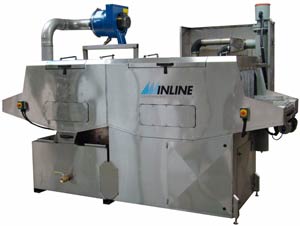

Pass Through Two-Stage Parts Washing Systems
InLine Cleaning Systems offers two-stage conveyor parts washing systems for processes that need to wash and rinse, or wash and dry.
Wash / Rinse Systems are available only in stainless steel and are designed for cleaning parts in such a way that the parts will be free of water spots, detergent residue, and soils.
Wash / Dry Systems are ideal for those customers whose parts need to be cleaned and dried. These systems are available in mild steel or stainless steel.
Below are the specifications of our two-stage conveyor style industrial parts washers.
| Model | Construction | Wash Pump | Rinse Pump | Blower | Wash Heat | Rinse Heat | Sump Capacity | Overall Height | Overall Length | Overall Width | Weight | Amp Draw 230V | Amp Draw 460V | Amp Draw 575V |
|---|
| I-1610WD-GP | Mild steel | 5 hp. | | 10 hp. | 36kW | | 145 gal. | 60" | 139.5" | 76" | 2200 lbs | 118 | 59 | 47 |
| I-1610WD-GPSS | Stainless steel | 5 hp. | | 10 hp. | 36kW | | 145 gal. | 60" | 139.5" | 76" | 2200 lbs | 118 | 59 | 47 |
| I-1610WR-GPSS | Stainless steel | 5 hp. | 3 hp. | | 27kW | 48kW | 145 gal. | 60" | 127" | 76" | 2200 lbs | 203 | 102 | 81 |
| I-2412WD-GP | Mild steel | 5 hp. | | 15 hp. | 36kW | | 170 gal. | 60" | 139.5" | 84" | 2600 lbs | 128 | 64 | 51 |
| I-2412WD-GPSS | Stainless steel | 5 hp. | | 15 hp. | 36kW | | 170 gal. | 60" | 139.5" | 84" | 2600 lbs | 128 | 64 | 51 |
| I-2412WR-GPSS | Stainless steel | 5 hp. | 3 hp. | | 36kW | 48kW | 170 gal. | 60" | 139.5" | 84" | 2600 lbs | 226 | 113 | 90 |
| I-2420WD-GP | Mild steel | 5 hp. | | 20 hp. | 60kW | | 380 gal. | 5'9" | 20' | 7'1" | 3800 lbs | 197 | 99 | 79 |
| I-2420WD-GPSS | Stainless steel | 5 hp. | | 20 hp. | 60kW | | 380 gal. | 5'9" | 20' | 7'1" | 3800 lbs | 197 | 99 | 79 |
| I-2420WR-GPSS | Stainless steel | 5 hp. | 3 hp. | | 60kW | 60kW | 380 gal. | 5'9" | 20' | 7'1" | 3800 lbs | 316 | 158 | 126 |
These inline two-stage parts washers have other accessories and options available.
Please give us a call or use the quote request button on the right to provide more information on your production process.
We manufacture, ship and install industrial parts washers throughout North America, and are dedicated to providing seamless
integration into your production process. Call us at 877-465-4635 to speak with a product specialist.
